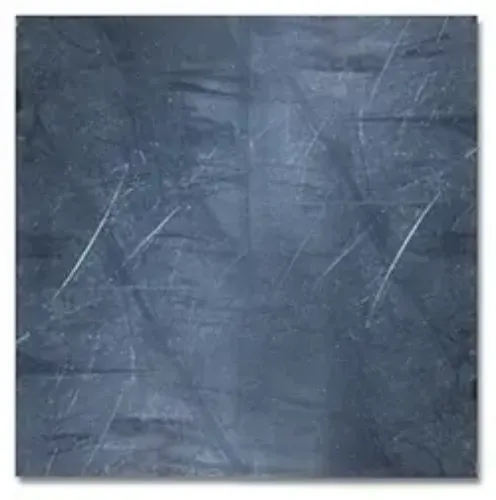

1/32 THK 39 X 39 316 S.S. FOIL

Ordered as 0834031X39X39, this is a 316 Stainless Steel Foil with Flexible Graphite Gasket Sheet with a thickness of 1/32 inch, a width of 39 inch, and a length of 39 inch. The gasket sheet supplies raw sealing stock for fabricating one-off or replacement gaskets in house. This item is further identified as Flexible Graphite.

As a material, 316 Stainless Steel Foil with Flexible Graphite is known for conformability that seals imperfect flange faces, excellent thermal conductivity and fire resistance. This material stands up to fire exposure, thermal shock, and most chemicals across the pH range. Verify compatibility before use with highly oxidizing service above rated temperature or strong oxidizing acids.

Typical settings include exhaust and flue gas, high-temperature process piping, and power generation.

Reference part number 0834031X39X39 when ordering; the item is sold by the sheet. Application requirements vary, so validate compatibility with your process conditions prior to installation. For a size or compound outside the standard catalog, APG can quote from a print or sample.
