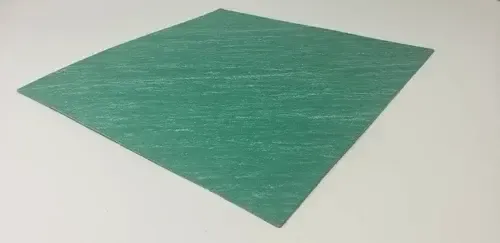

1/16" X 60" X 60" SHEET

APG stocks the 0CNA2000062X60X60, a Compressed Non-Asbestos Sheet Gasket Sheet supplied with a thickness of 1/16 inch, a width of 60 inch, and a length of 60 inch. A gasket sheet supports on-site gasket fabrication when the original part is unavailable. The catalog record notes: APG Compressed Non-asbestos 2000.

Compressed Non-Asbestos Sheet delivers excellent torque retention and low creep relaxation, a calendered, compressed fiber structure bound with elastomer. It resists hydrocarbons, steam and hot water, and a broad range of process chemicals. It should not be specified for service in strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope.

Typical settings include steam and hot water systems, chemical processing, and refining.

Reference part number 0CNA2000062X60X60 when ordering; the item is sold by the sheet. Check the compound against your process media, pressure and temperature before committing to a design. For a size or compound outside the standard catalog, APG can quote from a print or sample.
