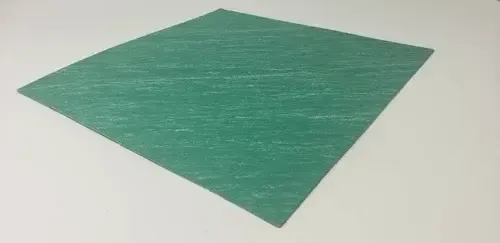

1/8" X 60" X 60" SHEET

This gasket sheet is supplied in Compressed Non-Asbestos supplied with a thickness of 1/8 inch, a width of 60 inch, and a length of 60 inch, catalogued under part number 0CNA2000125X60X60. It supplies raw sealing stock for fabricating one-off or replacement gaskets in house. Source specification: APG Compressed Non-asbestos 2000.

Expect good resistance to elevated flange loads, a broad range of process chemicals, and hydrocarbons. That behavior comes from the compound itself: Compressed Non-Asbestos is specified for reliable sealing on flanges with modest surface finish, excellent torque retention and low creep relaxation. Exposure to strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope will shorten service life.

It sees regular use in steam and hot water systems, power generation, and pulp and paper.

Order part number 0CNA2000125X60X60, sold by the sheet. Application requirements vary, so validate compatibility with your process conditions prior to installation. Not finding the exact configuration you need? APG cross-references from prints, samples and competitor part numbers.
