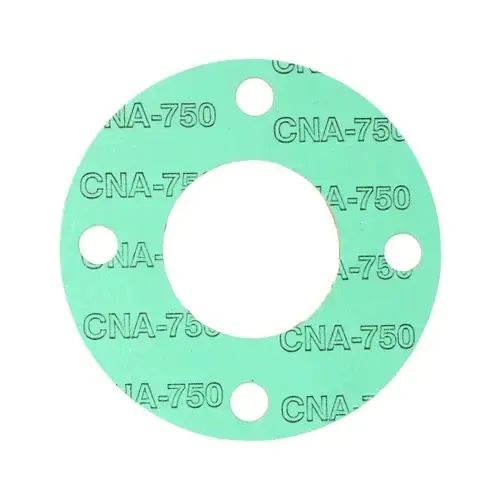

GASKET, CNA 750, 8.000" 300# FF

Part number 13860FF062B0800 is a light green Buna-N (Nitrile) Class 300 full face Flange Gasket measuring an 8 inch nominal pipe size, a Class 300 pressure rating, and a thickness of 0.062 inch. A flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. Supplementary detail from the product record: NPS, 0.062 THK.

Expect good resistance to hydraulic fluids, greases and lubricants, and water. That behavior comes from the compound itself: Buna-N (Nitrile) is widely chosen for reliable performance in both static and dynamic service, strong abrasion and tear resistance. It is not the right choice where strong acids or ozone and direct sunlight are present.

You will find this material specified across fluid power, hydraulic and pneumatic systems, and general industrial maintenance.

Reference part number 13860FF062B0800 when ordering; the item is sold individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
