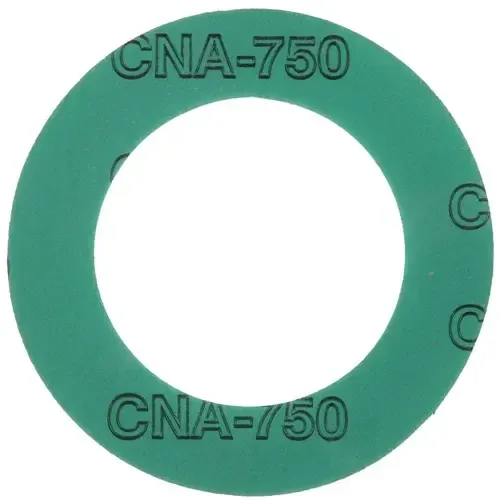

GASKET, CNA 750, 3.000" 300# RF

This flange gasket is supplied in light green Buna-N (Nitrile) Class 300 ring face with a 3 inch nominal pipe size, a Class 300 pressure rating, and a thickness of 0.062 inch, catalogued under part number 13860RF062B0300. It seals a bolted flange connection across the full pressure rating of the class. The catalog record notes: NPS, 0.062 THK.

Expect good resistance to petroleum-based oils, propane and butane, and water. That behavior comes from the compound itself: Buna-N (Nitrile) is specified for the most widely specified general-purpose sealing elastomer and an economical choice for high-volume maintenance programs. Applications involving polar solvents or ketones call for a different compound.

Common environments for this compound include hydraulic and pneumatic systems, fluid power, and construction equipment.

Reference part number 13860RF062B0300 when ordering; the item is sold individually. Confirm chemical compatibility, pressure and temperature against your own application requirements before installing. Not finding the exact configuration you need? APG cross-references from prints, samples and competitor part numbers.
