GASKET, KLNGR C4401, 2.000" 150# FF

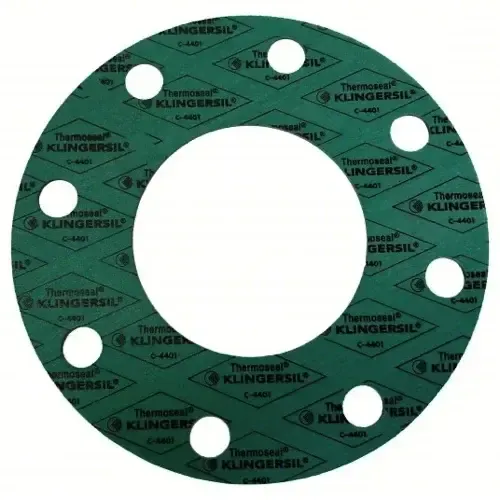

Ordered as 13850FF062A0200, this is a green Klingersil C-4401 Class 150 full face Flange Gasket built to a 2 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch. The flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. Supplementary detail from the product record: NPS, 0.062 THK.

Expect good resistance to hydrocarbons, steam and hot water, and elevated flange loads. That behavior comes from the compound itself: Klingersil C-4401 is valued for consistent thickness and density across the sheet, excellent torque retention and low creep relaxation.

It sees regular use in power generation, steam and hot water systems, and chemical processing.

13850FF062A0200 ships individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
