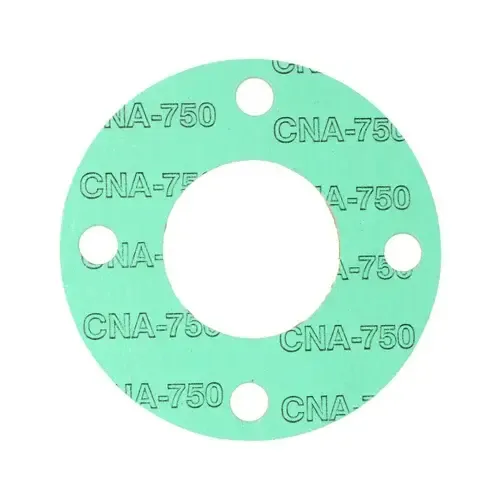

GASKET, CNA 750, 2.000" 300# FF

The 13860FF125B0200FC is a light green Buna-N (Nitrile) Class 300 full face Flange Gasket built to a 2 inch nominal pipe size, a Class 300 pressure rating, and a thickness of 0.125 inch. This flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. The catalog record notes: NPS, 0.125 THK.

It resists hydraulic fluids, petroleum-based oils, and water. That behavior comes from the compound itself: Buna-N (Nitrile) is valued for reliable performance in both static and dynamic service, strong abrasion and tear resistance. Exposure to ozone and direct sunlight or strong acids will shorten service life.

You will find this material specified across automotive, agricultural equipment, and general industrial maintenance.

13860FF125B0200FC ships individually. Check the compound against your process media, pressure and temperature before committing to a design. For a size or compound outside the standard catalog, APG can quote from a print or sample.
