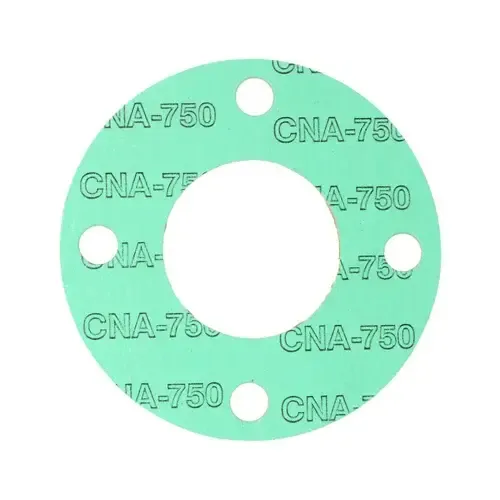

GASKET, CNA 750, 12.00" 300# FF

Part number 13860FF125B1200FC is a light green Buna-N (Nitrile) Class 300 full face Flange Gasket supplied with a 12 inch nominal pipe size, a Class 300 pressure rating, and a thickness of 0.125 inch. A flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. Additional detail on this item: NPS, 0.125 THK.

Buna-N (Nitrile) is known for the most widely specified general-purpose sealing elastomer, reliable performance in both static and dynamic service. The compound resists many alcohols, greases and lubricants, and water. It should not be specified for service in automotive brake fluid or strong acids.

It sees regular use in fluid power, hydraulic and pneumatic systems, and automotive.

Order part number 13860FF125B1200FC, sold individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. For a size or compound outside the standard catalog, APG can quote from a print or sample.
