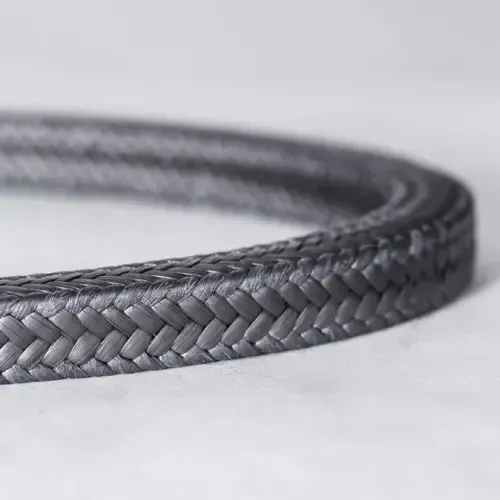

1" BRAIDED FLEXIBLE GRAPHITE PACKING

11711000-10 is a Braided Flexible Graphite Compression Packing supplied with a 1 inch square cross section. In service, this compression packing seals the shaft while allowing controlled leakage that lubricates and cools the packing set. Supplementary detail from the product record: 10 LB. Box - Approx. 22 FT.

Expect good resistance to steam, most chemicals across the pH range, and thermal shock. Braided Flexible Graphite is widely chosen for near-zero creep relaxation under load and exceptional temperature capability well beyond elastomeric materials. Applications involving highly oxidizing service above rated temperature or strong oxidizing acids call for a different compound.

Typical settings include steam and heat transfer systems, power generation, and high-temperature process piping.

Reference part number 11711000-10 when ordering; the item is sold individually. Unit weight is approximately 10 lb. Check the compound against your process media, pressure and temperature before committing to a design.
