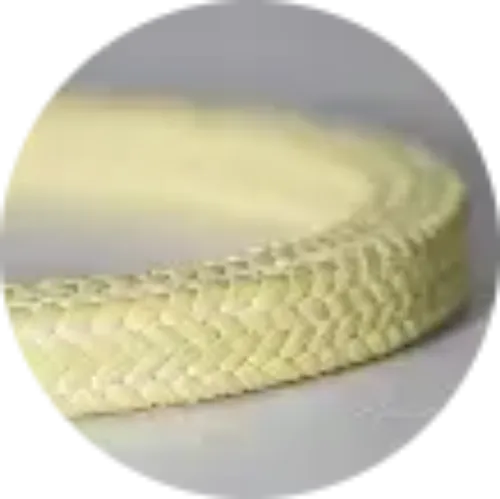

1" NON-ASBESTOS ARAMID FIBER PACKING

Ordered as 11781000-05, this is an Aramid Filament Compression Packing built to a 1 inch square cross section. The compression packing offers the most economical repairable shaft seal for pumps and valves. This item is further identified as 5 LB. Box - Approx. 8 FT.

It resists process media, elevated temperature and pressure, and shaft wear. That behavior comes from the compound itself: Aramid Filament is widely chosen for field-cuttable rings for fast, inexpensive repacking and a braided construction that conforms to the stuffing box. Rated for service to approximately 500°F. Exposure to over-tightening of the gland or running dry without flush will shorten service life.

Maintenance and OEM teams specify it across valves and agitators, water and process plants, and centrifugal and reciprocating pumps.

11781000-05 ships individually. Unit weight is approximately 5 lb. As always, verify media compatibility and operating conditions against the requirements of your specific application. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
