*.103 BUNA-N 4 LOBE CORD 70 DUROMETER

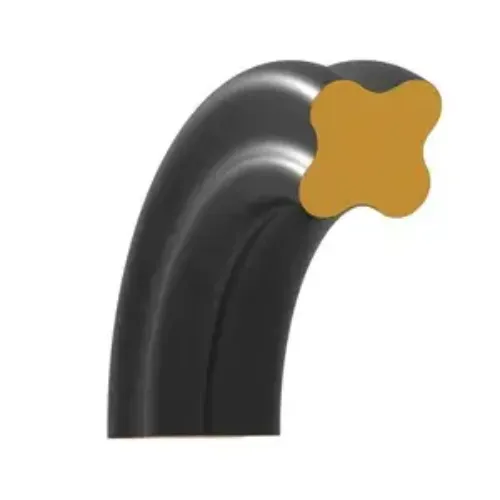

The 0Q284103 is a black Buna-N (Nitrile) 70 Shore A Quad-Ring Cord Stock supplied with a cross section of 0.103 in (2.62 mm). This quad-ring cord stock ships as continuous quad-ring stock so a custom-length seal can be cut and spliced on site.

As a material, Buna-N (Nitrile) is widely chosen for reliable performance in both static and dynamic service, an economical choice for high-volume maintenance programs. This material stands up to propane and butane, water, and many alcohols. Exposure to strong acids or automotive brake fluid will shorten service life. The profile itself contributes lower compressive load required to achieve a seal and a parting line located away from the sealing surface.

Typical settings include fluid power, agricultural equipment, and general industrial maintenance.

This item is sold by the foot under part number 0Q284103. Check the compound against your process media, pressure and temperature before committing to a design.
