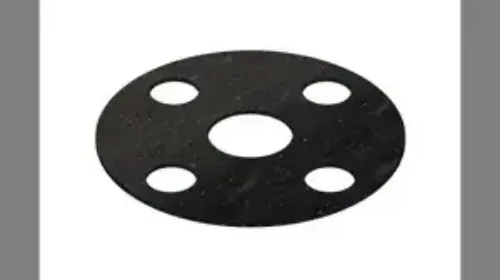

GASKET, 60 DURO EPR, 1.000" 150# FF

13723FF125A0100 is a black EPDM (EPR) Class 150 full face Flange Gasket with a 1 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.125 inch. In service, this flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. The catalog record notes: NPS, 0.125 THK.

EPDM (EPR) delivers excellent hot water and steam resistance, strong performance in outdoor and exposed installations. Expect good resistance to brake fluid, phosphate ester hydraulic fluids, and ozone, UV and weathering. It should not be specified for service in mineral oil-based lubricants or petroleum oils and fuels.

Common environments for this compound include outdoor equipment, brake and phosphate ester systems, and water and steam systems.

Order part number 13723FF125A0100, sold individually. Check the compound against your process media, pressure and temperature before committing to a design. Not finding the exact configuration you need? APG cross-references from prints, samples and competitor part numbers.
