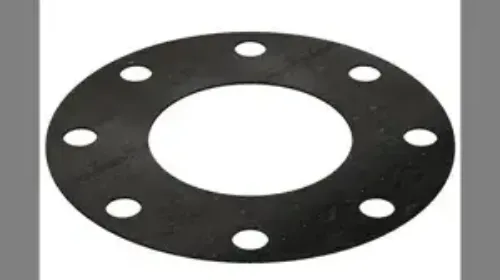

GASKET, 60 DURO BUNA-N, 5.000" 150# FF

Ordered as 13726FF062A0500, this is a black Buna-N (Nitrile) Class 150 full face Flange Gasket with a 5 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch. The flange gasket provides a replaceable sealing element at every flanged pipe connection. The catalog record notes: NPS, 0.062 THK.

It resists many alcohols, water, and petroleum-based oils. Buna-N (Nitrile) is widely chosen for low compression set under sustained load, strong abrasion and tear resistance. Exposure to polar solvents or automotive brake fluid will shorten service life.

You will find this material specified across construction equipment, fluid power, and agricultural equipment.

13726FF062A0500 ships individually. Check the compound against your process media, pressure and temperature before committing to a design. For a size or compound outside the standard catalog, APG can quote from a print or sample.
