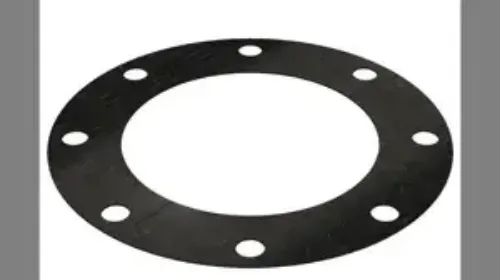

GASKET, 60 DURO BUNA-N, 6.000" 150# FF

This flange gasket is supplied in black Buna-N (Nitrile) Class 150 full face measuring a 6 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch, catalogued under part number 13726FF062A0600. It compresses between two pipe flanges under bolt load to create a leak-tight joint. Supplementary detail from the product record: NPS, 0.062 THK.

Buna-N (Nitrile) is known for reliable performance in both static and dynamic service, the most widely specified general-purpose sealing elastomer. The material holds up against many alcohols, propane and butane, and hydraulic fluids. Exposure to strong acids or polar solvents will shorten service life.

It sees regular use in hydraulic and pneumatic systems, agricultural equipment, and construction equipment.

This item is sold individually under part number 13726FF062A0600. Application requirements vary, so validate compatibility with your process conditions prior to installation. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
