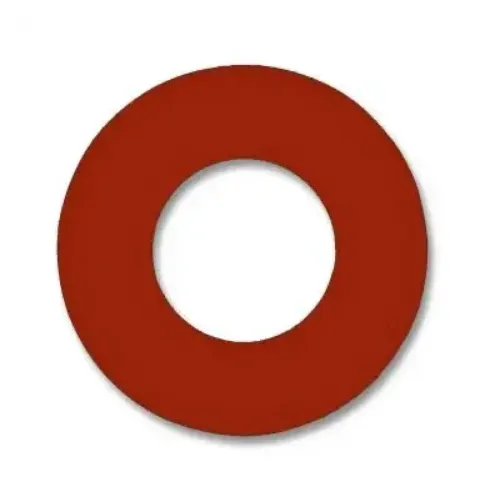

*GASKET, SMOOTH RED RBR, 2.500" 300# RF

Red Rubber, Smooth Finish Flange Gasket, 2.5 in, Class 300, Ring Face

Status
Available
Est. Ship Date
22 Nov 2026
Material
Red Rubber Smooth
Brand
APG
Color
Red
Flange Class
300
Flange Face
Ring Face (solid ring)
Operating Temp
-76°F to 446°F (-60°C to 230°C)
Size
2.5 inch (63.5 mm)
Thickness
0.062 inch (1.5748 mm)
Unit of Measure
EA
SKU:
13880RF062B0250FC
Please login to see price and add to cart

Product Specification

-
The 13880RF062B0250FC is a Red Rubber, Smooth Finish Class 300 ring face Flange Gasket built to a 2.5 inch nominal pipe size, a Class 300 pressure rating, and a thickness of 0.062 inch. This flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. The catalog record notes: NPS, 0.062 THK.

Red Rubber, Smooth Finish is specified here for good conformability on low-pressure flanges, reliable water and air sealing. Expect good resistance to water, abrasion, and low-pressure service. Applications involving ozone and direct sunlight or petroleum oils and fuels call for a different compound.

Common environments for this compound include water and wastewater, HVAC ductwork, and low-pressure air service.

Order part number 13880RF062B0250FC, sold individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
Item
13880RF062B0250FC
Description
*GASKET, SMOOTH RED RBR, 2.500" 300# RF
Finish
Smooth
Measurement System
Imperial
Product Code
7007
Product Category
Gaskets - Standard - Ring Face
