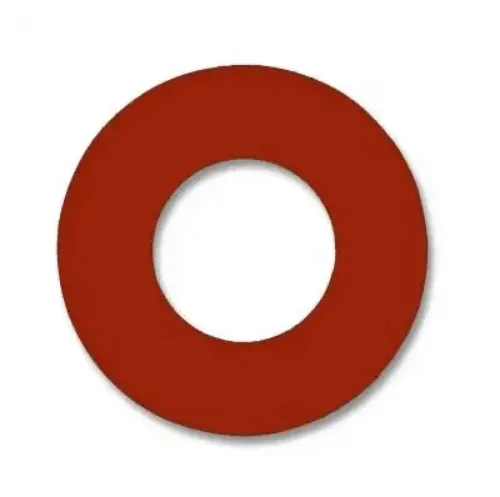

GASKET, SMOOTH RED RBR, 6.000" 300# RF

This flange gasket is supplied in Red Rubber, Smooth Finish Class 300 ring face supplied with a 6 inch nominal pipe size, a Class 300 pressure rating, and a thickness of 0.062 inch, catalogued under part number 13880RF062B0600FC. It compresses between two pipe flanges under bolt load to create a leak-tight joint. The catalog record notes: NPS, 0.062 THK.

Red Rubber, Smooth Finish is specified here for easy cutting and fabrication in the field, reliable water and air sealing. It resists mild chemicals, water, and abrasion. Exposure to high-temperature service or ozone and direct sunlight will shorten service life.

You will find this material specified across HVAC ductwork, general plant maintenance, and low-pressure air service.

Reference part number 13880RF062B0600FC when ordering; the item is sold individually. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
