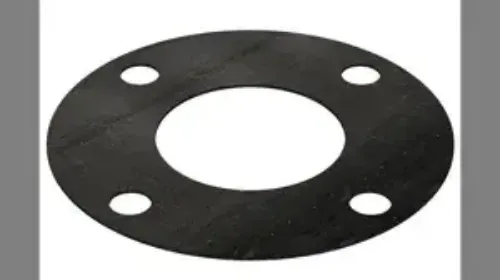

GASKET, 60 DURO NEO, 3.000" 150# FF

Ordered as 13900FF125A0300FC, this is a black Neoprene (Chloroprene) Class 150 full face Flange Gasket built to a 3 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.125 inch. The flange gasket seals a bolted flange connection across the full pressure rating of the class. Source specification: NPS, 0.125 THK.

Neoprene (Chloroprene) is widely chosen for strong performance in refrigeration circuits and good resilience across a moderate temperature band. The material holds up against sunlight and salt spray, moderate petroleum oil exposure, and ozone and weathering. It is not the right choice where strong oxidizing acids or chlorinated solvents are present.

It sees regular use in general industrial, transit and rail, and HVAC and refrigeration.

Reference part number 13900FF125A0300FC when ordering; the item is sold individually. Application requirements vary, so validate compatibility with your process conditions prior to installation.
