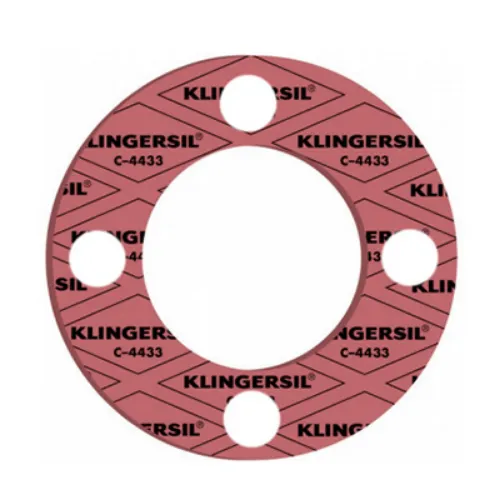

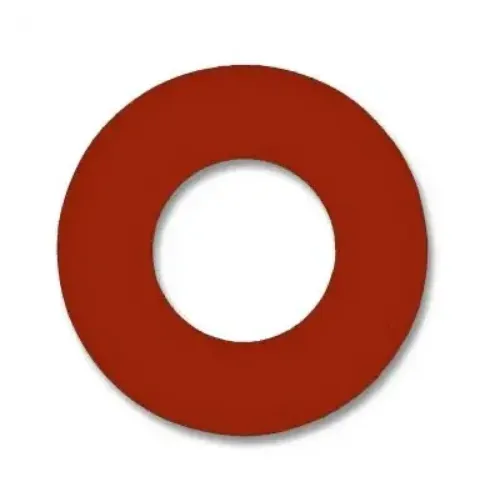

GASKET, KLNGR C4433, 2.500 , 150# RF

The 13C4433RF062A0250 is a red Klingersil C-4433 Class 150 ring face Flange Gasket built to a 2.5 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch. This flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. Source specification: NPS, 0.062 THK.

Klingersil C-4433 is specified here for consistent thickness and density across the sheet, excellent torque retention and low creep relaxation. The compound resists elevated flange loads, hydrocarbons, and steam and hot water. Applications involving strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope call for a different compound.

Typical settings include power generation, steam and hot water systems, and chemical processing.

Order part number 13C4433RF062A0250, sold individually. Check the compound against your process media, pressure and temperature before committing to a design.
