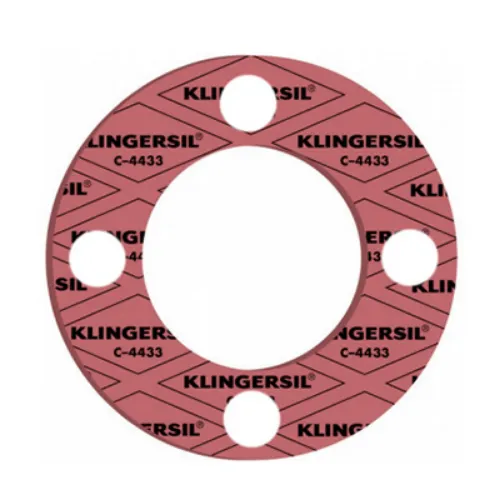

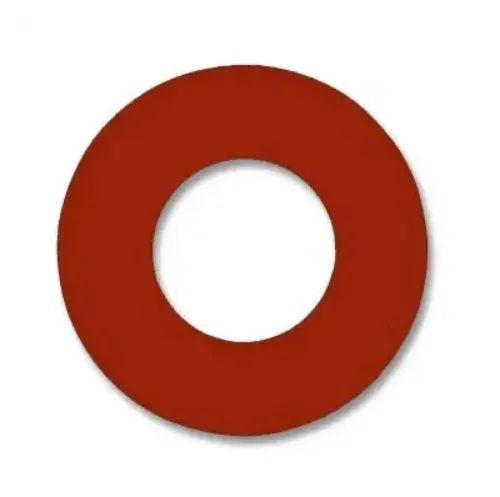

GASKET, KLNGR C4433, 8.000" , 150# RF

The 13C4433RF062A0800 is a red Klingersil C-4433 Class 150 ring face Flange Gasket measuring an 8 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch. This flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. Supplementary detail from the product record: NPS, 0.062 THK.

Klingersil C-4433 is specified here for calendered, compressed fiber structure bound with elastomer, clean release and easy removal at teardown. This material stands up to a broad range of process chemicals, hydrocarbons, and steam and hot water. Applications involving service beyond the published pressure-temperature envelope or strong oxidizing acids in some grades call for a different compound.

Typical settings include chemical processing, power generation, and pulp and paper.

13C4433RF062A0800 ships individually. Check the compound against your process media, pressure and temperature before committing to a design.
