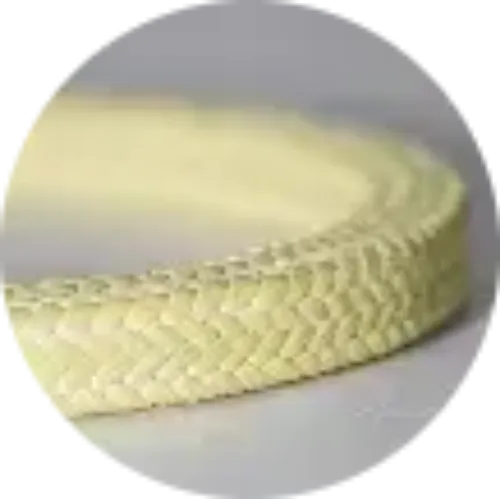

1/4" NON-ASBESTOS ARAMID FIBER PACKING

The 11780250-01 is an Aramid Filament Compression Packing supplied with a 1/4 inch square cross section. This compression packing seals the shaft while allowing controlled leakage that lubricates and cools the packing set. The catalog record notes: 1 LB. Box - Approx. 25 FT.

As a material, Aramid Filament is known for controlled leakage that lubricates and cools the shaft, field-cuttable rings for fast, inexpensive repacking. This material stands up to process media, elevated temperature and pressure, and shaft wear. Rated for service to approximately 500°F. Verify compatibility before use with running dry without flush or over-tightening of the gland.

Common environments for this compound include centrifugal and reciprocating pumps, water and process plants, and mixers and rotary equipment.

Stocked as 11780250-01 and sold individually. Unit weight is approximately 1 lb. Check the compound against your process media, pressure and temperature before committing to a design. Not finding the exact configuration you need? APG cross-references from prints, samples and competitor part numbers.
