1/8" NON-ASBESTOS ARAMID FIBER PACKING

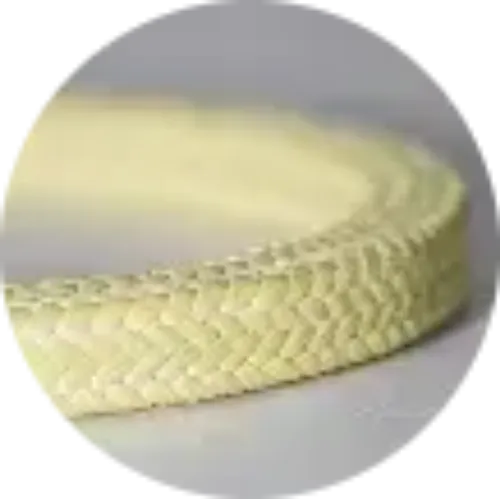

The 11780125-01 is an Aramid Filament Compression Packing built to a 1/8 inch square cross section. This compression packing seals the shaft while allowing controlled leakage that lubricates and cools the packing set. The catalog record notes: 1 LB. Box - Approx. 87 FT.

As a material, Aramid Filament is known for a braided construction that conforms to the stuffing box and field-cuttable rings for fast, inexpensive repacking. Expect good resistance to elevated temperature and pressure, process media, and shaft wear. Rated for service to approximately 500°F. It should not be specified for service in over-tightening of the gland or running dry without flush.

You will find this material specified across centrifugal and reciprocating pumps, water and process plants, and mixers and rotary equipment.

This item is sold individually under part number 11780125-01. Unit weight is approximately 1 lb. Review your operating media and conditions against this specification before installation. Not finding the exact configuration you need? APG cross-references from prints, samples and competitor part numbers.
