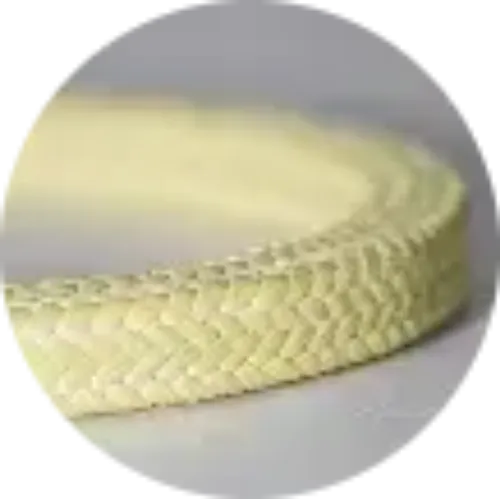

1/8" NON-ASBESTOS ARAMID FIBER PACKING

11780125-05 is an Aramid Filament Compression Packing measuring a 1/8 inch square cross section. In service, this compression packing provides field-serviceable shaft sealing that can be adjusted and topped up without disassembling the pump. Source specification: 5 LB. Box - Approx. 435 FT.

As a material, Aramid Filament is specified for field-cuttable rings for fast, inexpensive repacking and dependable service life when correctly adjusted. It resists shaft wear, process media, and elevated temperature and pressure. Rated for service to approximately 500°F. Applications involving over-tightening of the gland or running dry without flush call for a different compound.

You will find this material specified across water and process plants, valves and agitators, and mixers and rotary equipment.

Reference part number 11780125-05 when ordering; the item is sold individually. Unit weight is approximately 5 lb. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
