30 X 42 X 6 FLUOROELASTOMER OIL SEAL

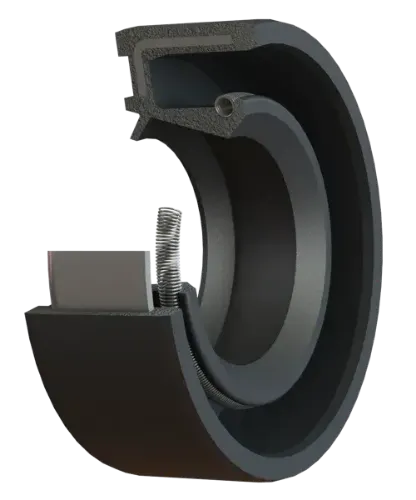

The MOSV-030-042-006-TC is a Viton® (FKM) Double Lip with Spring Oil Seal with a 30 mm inside diameter, a 42 mm outside diameter, and a height of 6 mm. This oil seal uses a garter spring to maintain constant lip load against the shaft. Supplementary detail from the product record: Rubber Covered OD, Double Lip W/ Spring AS.

Expect good resistance to petroleum oils and fuels, aggressive chemicals, and many acids. That behavior comes from the compound itself: Viton® (FKM) is specified for excellent resistance to compression set and permeation, very low compression set at elevated temperature. Exposure to hot water and steam or low-molecular-weight organic acids will shorten service life.

Typical settings include automotive fuel systems, high-temperature process equipment, and aerospace.

Reference part number MOSV-030-042-006-TC when ordering; the item is sold individually. Check the compound against your process media, pressure and temperature before committing to a design. Not finding the exact configuration you need? APG cross-references from prints, samples and competitor part numbers.
