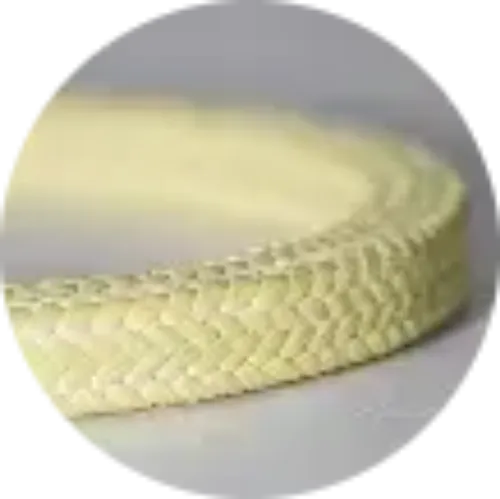

*3/16" NON-ASBESTOS ARAMID FIBER PACKING

11780187-10 is an Aramid Filament Packing Compression Packing measuring a 3/16 inch square cross section. In service, this compression packing seals the shaft while allowing controlled leakage that lubricates and cools the packing set. Source specification: 10 LB. Box - Approx. 429 FT.

This material stands up to shaft wear, process media, and elevated temperature and pressure. That behavior comes from the compound itself: Aramid Filament Packing is widely chosen for dependable service life when correctly adjusted and a braided construction that conforms to the stuffing box. Rated for service to approximately 500°F. It is not the right choice where running dry without flush or over-tightening of the gland are present.

Common environments for this compound include centrifugal and reciprocating pumps, valves and agitators, and water and process plants.

Reference part number 11780187-10 when ordering; the item is sold individually. Unit weight is approximately 10 lb. As always, verify media compatibility and operating conditions against the requirements of your specific application.
