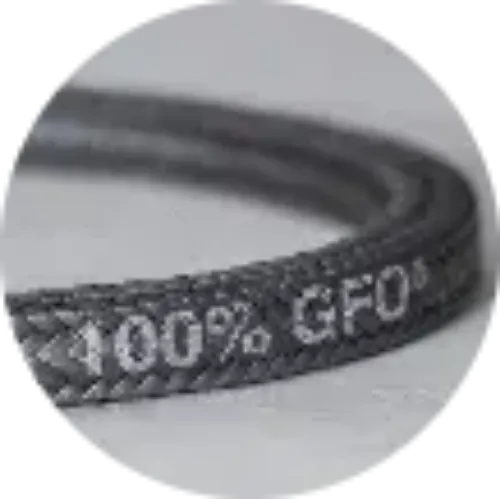

*3/4" PURE GRAPHITE YARN FIBER PACKING

This compression packing is supplied in Graphite Filament supplied with a 3/4 inch square cross section, catalogued under part number 11750750-10. It is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Supplementary detail from the product record: 10 LB. Box - Approx. 33 FT.

Graphite Filament is specified here for near-zero creep relaxation under load and conformability that seals imperfect flange faces. The material holds up against steam, most chemicals across the pH range, and very high temperature. It should not be specified for service in highly oxidizing service above rated temperature or strong oxidizing acids.

Typical settings include high-temperature process piping, power generation, and exhaust and flue gas.

11750750-10 ships individually. Unit weight is approximately 10 lb. As always, verify media compatibility and operating conditions against the requirements of your specific application. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
