5/16" NON-ASBESTOS ARAMID FIBER PACKING

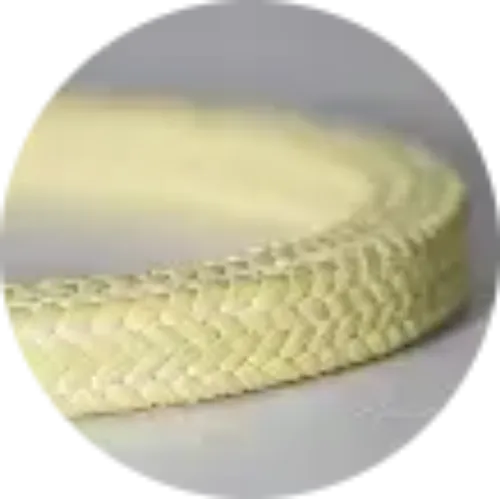

Ordered as 11780312-10, this is an Aramid Filament Compression Packing supplied with a 5/16 inch square cross section. The compression packing seals the shaft while allowing controlled leakage that lubricates and cools the packing set. The catalog record notes: 10 LB. Box - Approx. 188 FT.

The compound resists elevated temperature and pressure, process media, and shaft wear. That behavior comes from the compound itself: Aramid Filament delivers a braided construction that conforms to the stuffing box and field-cuttable rings for fast, inexpensive repacking. Rated for service to approximately 500°F.

Maintenance and OEM teams specify it across centrifugal and reciprocating pumps, mixers and rotary equipment, and valves and agitators.

11780312-10 ships individually. Unit weight is approximately 10 lb. Check the compound against your process media, pressure and temperature before committing to a design. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
