568-046 FKM 75 SQUARE CUT RINGS

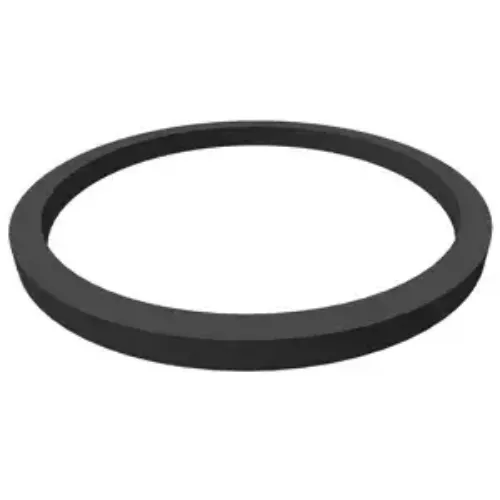

APG stocks the SV70046, an AS568-046 black Viton® (FKM) 70 Shore A Square-Cut Ring supplied with an inside diameter of 4.239 in (107.67 mm), a cross section of 0.07 in (1.78 mm), and an outside diameter of 4.379 in (111.23 mm). A square-cut ring seals with a broad flat contact band instead of the line contact of a round-section ring.

Viton® (FKM) is specified here for outstanding high-temperature capability and long service life in hot, chemically aggressive environments. The material holds up against engine and transmission fluids, chlorinated solvents, and aromatic hydrocarbons. Continuous operating temperature is published at -15°F (-26.1°C) to 400°F (204.4°C). Applications involving low-molecular-weight organic acids or ketones and esters call for a different compound. The profile itself contributes a flat contact band that spreads sealing load across a wider area and greater resistance to extrusion than a round section of the same size. Note that a square section is less suited to high-speed rotary service, where the larger contact area raises friction and heat.

Common environments for this compound include semiconductor equipment, high-temperature process equipment, and oil and gas.

Reference part number SV70046 when ordering; the item is sold individually. Nominal inside diameter is listed as 4 1/4 inch. Review your operating media and conditions against this specification before installation. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
