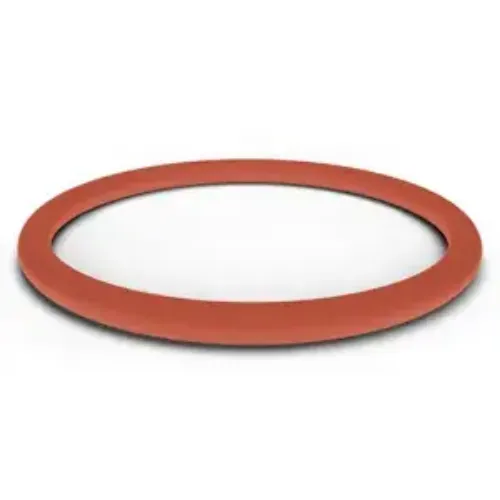

The TES70047 is an AS568-047 red PTFE-Encapsulated Silicone 70 Shore A O-Ring with an inside diameter of 4.489 in (114.02 mm), a cross section of 0.07 in (1.78 mm), and an outside diameter of 4.629 in (117.58 mm). This o-ring creates a positive seal at flange, piston and rod interfaces without added hardware. The catalog record notes: ORING 70 Durometer.
PTFE-Encapsulated Silicone is specified here for chemical inertness of PTFE with the wide temperature range of silicone and non-contaminating, non-stick sealing surface. It resists steam, strong acids and solvents, and nearly all process chemicals. The material carries a published service range of -75°F (-59.4°C) to 400°F (204.4°C). Applications involving installation over sharp edges or tight-radius dynamic flexing call for a different compound.
Typical settings include food and beverage processing, pharmaceutical manufacturing, and cryogenic and high-temperature equipment.
Reference part number TES70047 when ordering; the item is sold individually. Check the compound against your process media, pressure and temperature before committing to a design. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
Description -047 RED FEP ENCAPSULATED SILICONE 85D
Actual Cross Section 0.07 inch (1.78 mm)
Actual Inside Diameter 4.489 inch (114.02 mm)
Actual Outside Diameter 4.629 inch (117.58 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
