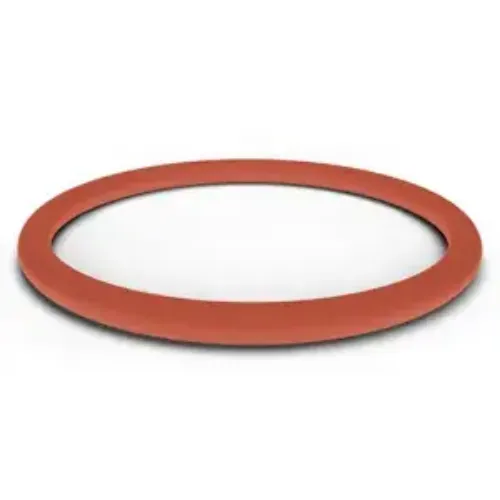

This o-ring is supplied in AS568-154 red PTFE-Encapsulated Silicone 70 Shore A measuring an inside diameter of 3.737 in (94.92 mm), a cross section of 0.103 in (2.62 mm), and an outside diameter of 3.943 in (100.15 mm), catalogued under part number TES70154. It creates a positive seal at flange, piston and rod interfaces without added hardware. Source specification: ORING 70 Durometer.
PTFE-Encapsulated Silicone is specified here for strong resistance to permeation and non-contaminating, non-stick sealing surface. It resists strong acids and solvents, steam, and nearly all process chemicals. Published continuous service range is -75°F (-59.4°C) to 400°F (204.4°C). It should not be specified for service in tight-radius dynamic flexing or installation over sharp edges.
Maintenance and OEM teams specify it across cryogenic and high-temperature equipment, chemical processing, and food and beverage processing.
TES70154 ships individually. Nominal inside diameter is listed as 3 3/4 inch. Confirm chemical compatibility, pressure and temperature against your own application requirements before installing. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
Description -154 RED FEP ENCAPSULATED SILICONE 85D
Actual Cross Section 0.103 inch (2.62 mm)
Actual Inside Diameter 3.737 inch (94.92 mm)
Actual Outside Diameter 3.943 inch (100.15 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
