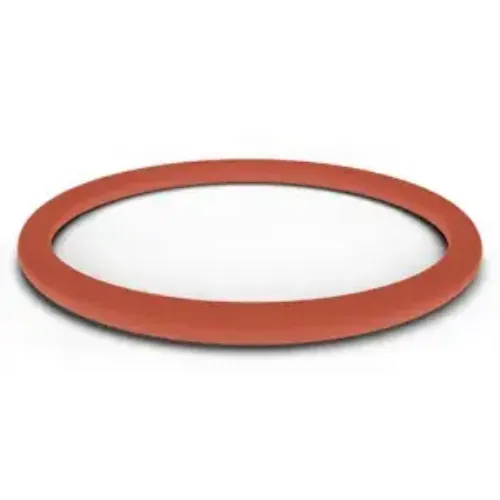

Ordered as TES70164, this is an AS568-164 red PTFE-Encapsulated Silicone 70 Shore A O-Ring with an inside diameter of 6.237 in (158.42 mm), a cross section of 0.103 in (2.62 mm), and an outside diameter of 6.443 in (163.65 mm). The o-ring remains the most cost-effective sealing element available for pressurized assemblies. Source specification: ORING 70 Durometer.
As a material, PTFE-Encapsulated Silicone offers excellent recovery across extreme temperature cycling and a non-contaminating, non-stick sealing surface. The material holds up against wide temperature swings, steam, and nearly all process chemicals. Published continuous service range is -75°F (-59.4°C) to 400°F (204.4°C). It should not be specified for service in tight-radius dynamic flexing or installation over sharp edges.
Common environments for this compound include chemical processing, food and beverage processing, and pharmaceutical manufacturing.
Reference part number TES70164 when ordering; the item is sold individually. Nominal inside diameter is listed as 6 1/4 inch. Confirm chemical compatibility, pressure and temperature against your own application requirements before installing. For a size or compound outside the standard catalog, APG can quote from a print or sample.
Description -164 RED FEP ENCAPSULATED SILICONE 85D
Actual Cross Section 0.103 inch (2.62 mm)
Actual Inside Diameter 6.237 inch (158.42 mm)
Actual Outside Diameter 6.443 inch (163.65 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
