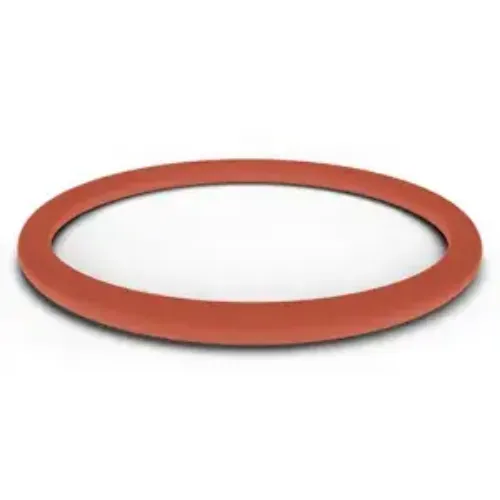

The TES70274 is an AS568-274 red PTFE-Encapsulated Silicone 70 Shore A O-Ring supplied with an inside diameter of 9.984 in (253.59 mm), a cross section of 0.139 in (3.53 mm), and an outside diameter of 10.262 in (260.65 mm). This o-ring delivers dependable bidirectional sealing in a compact groove envelope. This item is further identified as ORING 70 Durometer.
Expect good resistance to nearly all process chemicals, steam, and wide temperature swings. PTFE-Encapsulated Silicone offers a seamless PTFE jacket over a resilient silicone core and strong resistance to permeation. The material carries a published service range of -75°F (-59.4°C) to 400°F (204.4°C). Applications involving tight-radius dynamic flexing or installation over sharp edges call for a different compound.
You will find this material specified across food and beverage processing, chemical processing, and cryogenic and high-temperature equipment.
Order part number TES70274, sold individually. Nominal inside diameter is listed as 10 inch. Check the compound against your process media, pressure and temperature before committing to a design. For a size or compound outside the standard catalog, APG can quote from a print or sample.
Description -274 RED FEP ENCAPSULATED SILICONE 85D
Actual Cross Section 0.139 inch (3.53 mm)
Actual Inside Diameter 9.984 inch (253.59 mm)
Actual Outside Diameter 10.262 inch (260.65 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
