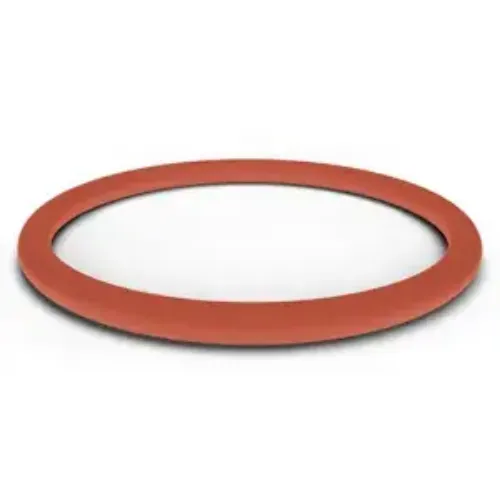

TES70316 is an AS568-316 red PTFE-Encapsulated Silicone 70 Shore A O-Ring measuring an inside diameter of 0.85 in (21.59 mm), a cross section of 0.21 in (5.33 mm), and an outside diameter of 1.27 in (32.26 mm). In service, this o-ring creates a positive seal at flange, piston and rod interfaces without added hardware. The catalog record notes: ORING 70 Durometer.
As a material, PTFE-Encapsulated Silicone offers excellent recovery across extreme temperature cycling and a non-contaminating, non-stick sealing surface. Expect good resistance to wide temperature swings, strong acids and solvents, and steam. Published continuous service range is -75°F (-59.4°C) to 400°F (204.4°C). It is not the right choice where tight-radius dynamic flexing or installation over sharp edges are present.
You will find this material specified across chemical processing, pharmaceutical manufacturing, and cryogenic and high-temperature equipment.
This item is sold individually under part number TES70316. Nominal inside diameter is listed as 7/8 inch. Review your operating media and conditions against this specification before installation. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
Description -316 RED FEP ENCAPSULATED SILICONE 85D
Actual Cross Section 0.21 inch (5.33 mm)
Actual Inside Diameter 0.85 inch (21.59 mm)
Actual Outside Diameter 1.27 inch (32.26 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
