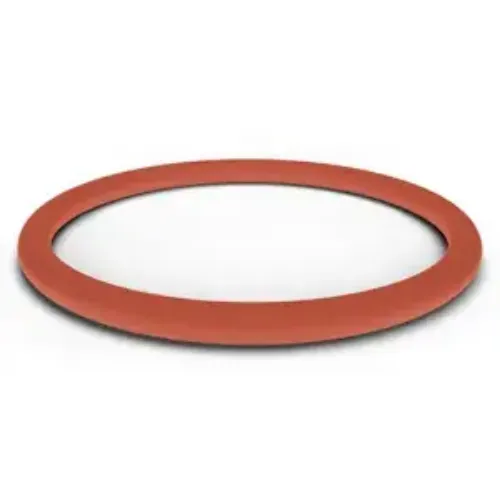

TES70354 is an AS568-354 red PTFE-Encapsulated Silicone 70 Shore A O-Ring measuring an inside diameter of 5.1 in (129.54 mm), a cross section of 0.21 in (5.33 mm), and an outside diameter of 5.52 in (140.21 mm). In service, this o-ring seats in a machined groove and forms a leak-tight barrier when compressed between two mating surfaces. Supplementary detail from the product record: ORING 70 Durometer.
PTFE-Encapsulated Silicone is specified here for non-contaminating, non-stick sealing surface and seamless PTFE jacket over a resilient silicone core. The compound resists steam, nearly all process chemicals, and strong acids and solvents. The material carries a published service range of -75°F (-59.4°C) to 400°F (204.4°C). It should not be specified for service in tight-radius dynamic flexing or installation over sharp edges.
It sees regular use in cryogenic and high-temperature equipment, food and beverage processing, and pharmaceutical manufacturing.
Reference part number TES70354 when ordering; the item is sold individually. Nominal inside diameter is listed as 5 1/8 inch. Review your operating media and conditions against this specification before installation. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
Description -354 RED FEP ENCAPSULATED SILICONE 85D
Actual Cross Section 0.21 inch (5.33 mm)
Actual Inside Diameter 5.1 inch (129.54 mm)
Actual Outside Diameter 5.52 inch (140.21 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
