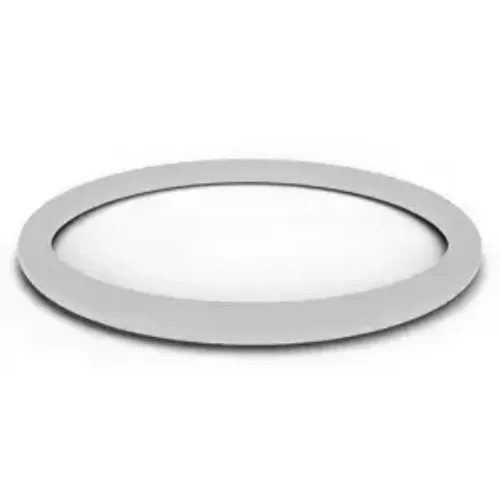

-403 WHITE PTFE 55D O-RING

PTFE O-Ring, 1.725 in ID x 0.275 CS, 55D, White, -65 to 500°F

Status
Out of Stock
Est. Ship Date
Material
PTFE (Polytetrafluoroethylene)
Dash Size
403
Durometer
55 Shore D
Cross Section Type
Round
Color
White
Minimum Temperature
-65°F (-53.9°C)
Maximum Temperature
500°F (260°C)
Nominal Cross Section
1/4 inch
Nominal Inside Diameter
1 3/4 inch
Nominal Outside Diameter
2 1/4 inch
Unit of Measure
EA
SKU:
TFE403

Product Specification

-
APG stocks the TFE403, an AS568-403 white PTFE (Teflon) 55 Shore D O-Ring built to an inside diameter of 1.725 in (43.82 mm), a cross section of 0.275 in (6.99 mm), and an outside diameter of 2.275 in (57.79 mm). An o-ring compresses into its gland to block fluid or gas migration across a joint.

This material stands up to strong acids and bases, steam, and nearly all industrial chemicals. PTFE (Teflon) delivers near-universal chemical inertness and a very wide continuous service temperature range. The material carries a published service range of -65°F (-53.9°C) to 500°F (260°C). It should not be specified for service in molten alkali metals or elemental fluorine at temperature.

Maintenance and OEM teams specify it across aggressive-media pipelines, chemical processing, and semiconductor fabrication.

Order part number TFE403, sold individually. Review your operating media and conditions against this specification before installation.
Item
TFE403
Description
-403 WHITE PTFE 55D O-RING
Actual Cross Section
0.275 inch (6.99 mm)
Actual Inside Diameter
1.725 inch (43.82 mm)
Actual Outside Diameter
2.275 inch (57.79 mm)
FDA Compliant
No
Measurement System
Imperial
Metal Detectable
No
NSF Certified
No
Product Code
6006
Product Category
O-Rings - Bulk - AS568 Premium
