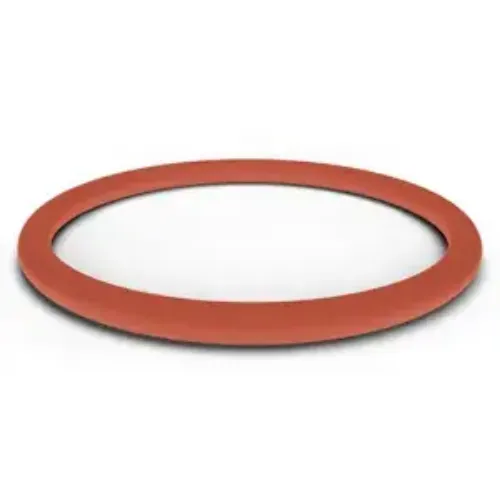

This o-ring is supplied in AS568-416 red PTFE-Encapsulated Silicone 70 Shore A measuring an inside diameter of 3.35 in (85.09 mm), a cross section of 0.275 in (6.99 mm), and an outside diameter of 3.9 in (99.06 mm), catalogued under part number TES70416. It creates a positive seal at flange, piston and rod interfaces without added hardware. This item is further identified as ORING 70 Durometer.
As a material, PTFE-Encapsulated Silicone is known for a non-contaminating, non-stick sealing surface and a seamless PTFE jacket over a resilient silicone core. The compound resists steam, nearly all process chemicals, and strong acids and solvents. Continuous operating temperature is published at -75°F (-59.4°C) to 400°F (204.4°C). Exposure to installation over sharp edges or tight-radius dynamic flexing will shorten service life.
Common environments for this compound include pharmaceutical manufacturing, chemical processing, and cryogenic and high-temperature equipment.
TES70416 ships individually. Review your operating media and conditions against this specification before installation.
Description -416 RED FEP ENCAPSULATED SILICONE 85D
Actual Inside Diameter 3.35 inch (85.09 mm)
Actual Cross Section 0.275 inch (6.99 mm)
Actual Outside Diameter 3.9 inch (99.06 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
