568-419 PTFE ORINGS FDA

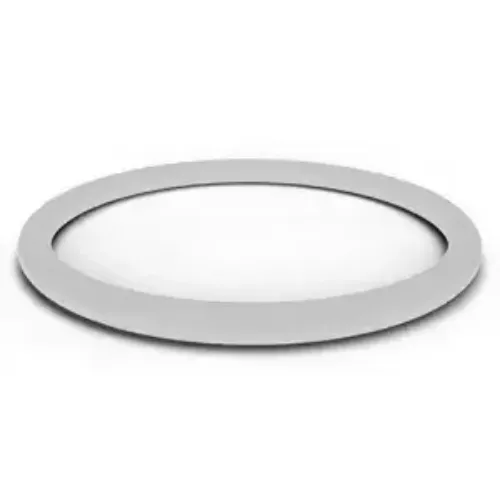

This o-ring is supplied in AS568-419 white PTFE (Teflon) 55 Shore D built to an inside diameter of 3.725 in (94.62 mm), a cross section of 0.275 in (6.99 mm), and an outside diameter of 4.275 in (108.59 mm), catalogued under part number TFE419. It seats in a machined groove and forms a leak-tight barrier when compressed between two mating surfaces.

The compound resists steam, solvents, and strong acids and bases. That behavior comes from the compound itself: PTFE (Teflon) delivers one of the lowest coefficients of friction of any solid and a very wide continuous service temperature range. Continuous operating temperature is published at -65°F (-53.9°C) to 500°F (260°C). Exposure to service requiring elastic recovery or elemental fluorine at temperature will shorten service life.

Common environments for this compound include aggressive-media pipelines, laboratory equipment, and semiconductor fabrication.

This item is sold individually under part number TFE419. Application requirements vary, so validate compatibility with your process conditions prior to installation. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
