568-420 PTFE ORINGS FDA

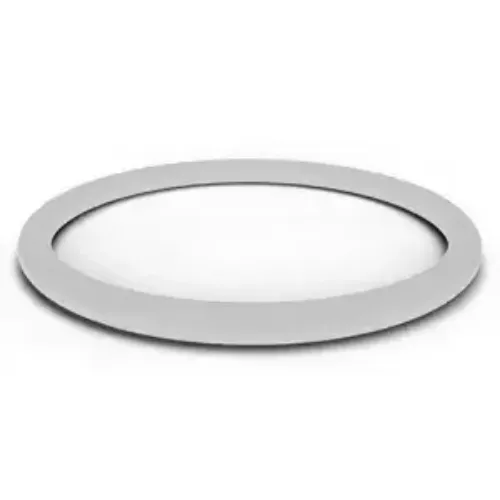

This o-ring is supplied in AS568-420 white PTFE (Teflon) 55 Shore D supplied with an inside diameter of 3.85 in (97.79 mm), a cross section of 0.275 in (6.99 mm), and an outside diameter of 4.4 in (111.76 mm), catalogued under part number TFE420. It provides a reliable static or dynamic seal by deforming into its gland under assembly load.

PTFE (Teflon) is specified here for excellent dielectric properties and near-universal chemical inertness. Expect good resistance to strong acids and bases, solvents, and oxidizing media. Service temperature is rated from -65°F (-53.9°C) through 500°F (260°C). It should not be specified for service in service requiring elastic recovery or elemental fluorine at temperature.

Common environments for this compound include chemical processing, food and beverage, and laboratory equipment.

This item is sold individually under part number TFE420. Check the compound against your process media, pressure and temperature before committing to a design. For a size or compound outside the standard catalog, APG can quote from a print or sample.
