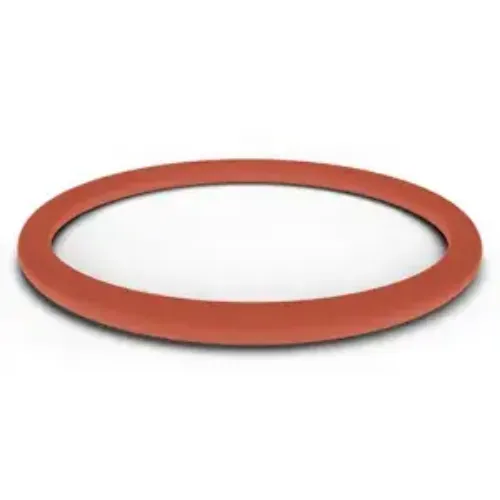

Part number TES70434 is an AS568-434 red PTFE-Encapsulated Silicone 70 Shore A O-Ring built to an inside diameter of 5.6 in (142.24 mm), a cross section of 0.275 in (6.99 mm), and an outside diameter of 6.15 in (156.21 mm). An o-ring seats in a machined groove and forms a leak-tight barrier when compressed between two mating surfaces. Additional detail on this item: ORING 70 Durometer.
PTFE-Encapsulated Silicone is specified here for strong resistance to permeation and non-contaminating, non-stick sealing surface. This material stands up to nearly all process chemicals, wide temperature swings, and steam. Published continuous service range is -75°F (-59.4°C) to 400°F (204.4°C). Applications involving tight-radius dynamic flexing or installation over sharp edges call for a different compound.
It sees regular use in food and beverage processing, pharmaceutical manufacturing, and cryogenic and high-temperature equipment.
Stocked as TES70434 and sold individually. Nominal inside diameter is listed as 5 5/8 inch. As always, verify media compatibility and operating conditions against the requirements of your specific application. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
Description -434 RED FEP ENCAPSULATED SILICONE 85D
Actual Cross Section 0.275 inch (6.99 mm)
Actual Inside Diameter 5.6 inch (142.24 mm)
Actual Outside Diameter 6.15 inch (156.21 mm)
Measurement System Imperial
Product Category O-Rings - Bulk - AS568 Premium
