568-901 PTFE ORINGS FDA

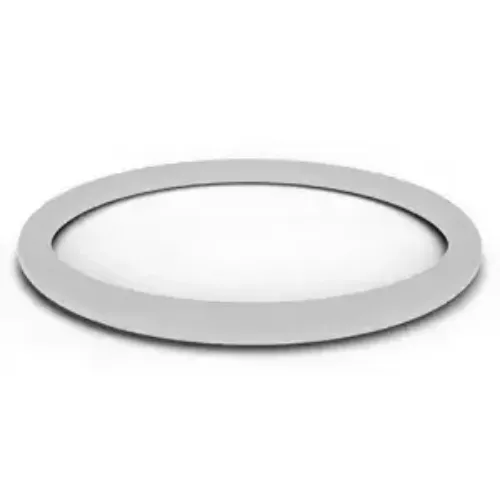

This o-ring is supplied in AS568-901 white PTFE (Teflon) 55 Shore D supplied with an inside diameter of 0.185 in (4.7 mm), a cross section of 0.056 in (1.42 mm), and an outside diameter of 0.297 in (7.54 mm), catalogued under part number TFE901. It seats in a machined groove and forms a leak-tight barrier when compressed between two mating surfaces.

PTFE (Teflon) is specified here for excellent dielectric properties and non-stick, non-contaminating surface characteristics. This material stands up to nearly all industrial chemicals, steam, and strong acids and bases. Continuous operating temperature is published at -65°F (-53.9°C) to 500°F (260°C). It is not the right choice where elemental fluorine at temperature or molten alkali metals are present.

Maintenance and OEM teams specify it across pharmaceutical and biotech, food and beverage, and semiconductor fabrication.

Reference part number TFE901 when ordering; the item is sold individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
