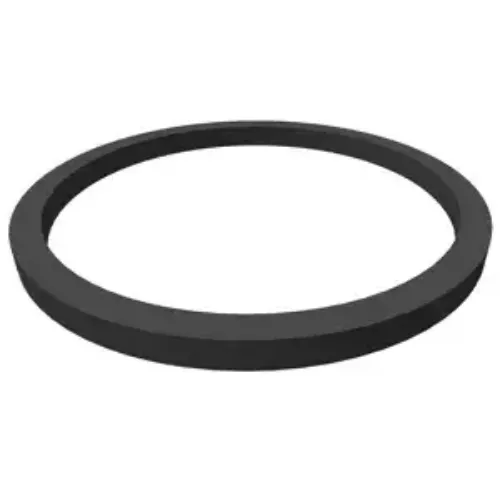

568-911 BUNA 70 SQUARE CUT RINGS

Part number SH70911 is an AS568-911 black Buna-N (Nitrile) 70 Shore A Square-Cut Ring supplied with an inside diameter of 0.863 in (21.92 mm), a cross section of 0.116 in (2.95 mm), and an outside diameter of 1.095 in (27.81 mm). A square-cut ring presents a flat rectangular section that cannot roll or twist in its groove, making it a dependable static seal.

Buna-N (Nitrile) is widely chosen for reliable performance in both static and dynamic service, low compression set under sustained load. Expect good resistance to hydraulic fluids, many alcohols, and petroleum-based oils. Continuous operating temperature is published at -40°F (-40°C) to 250°F (121.1°C). The profile itself contributes a rectangular section that will not roll in the groove and simple lathe-cut manufacture at low tooling cost. Note that a square section is less suited to high-speed rotary service, where the larger contact area raises friction and heat.

You will find this material specified across construction equipment, agricultural equipment, and general industrial maintenance.

Stocked as SH70911 and sold individually. Confirm chemical compatibility, pressure and temperature against your own application requirements before installing.
