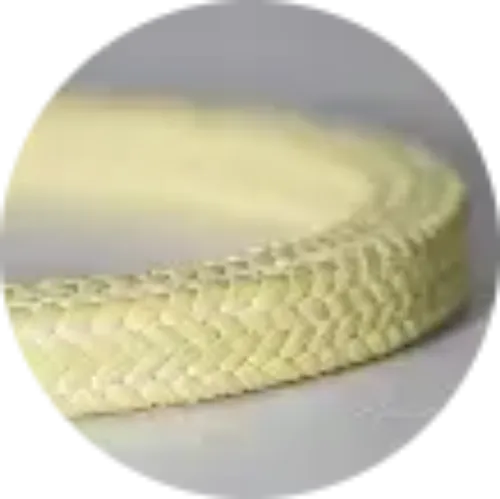

*7/8" NON-ASBESTOS ARAMID FIBER PACKING

Part number 11780875-10 is an Aramid Filament Compression Packing supplied with a 7/8 inch square cross section. A compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Source specification: 10 LB. Box - Approx. 20 FT.

It resists shaft wear, process media, and elevated temperature and pressure. Aramid Filament is widely chosen for field-cuttable rings for fast, inexpensive repacking and a braided construction that conforms to the stuffing box. Rated for service to approximately 500°F. It is not the right choice where over-tightening of the gland or running dry without flush are present.

Common environments for this compound include mixers and rotary equipment, valves and agitators, and water and process plants.

Reference part number 11780875-10 when ordering; the item is sold individually. Unit weight is approximately 10 lb. Check the compound against your process media, pressure and temperature before committing to a design. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
