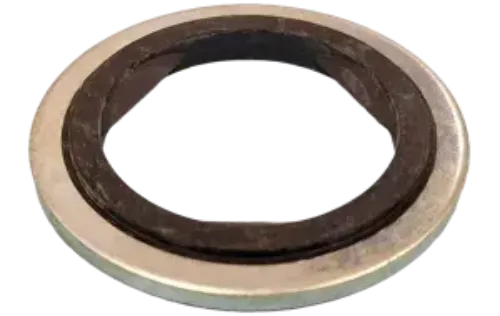

FASTNER SEAL, ZINC PLATED STEEL

Part number AFS600-0101-5/16 is a black Buna-N (Nitrile) Thread Seal built to an inside diameter of 0.313 in (7.94 mm). A thread seal seals at the threaded joint so the fastener itself carries the sealing function. This item is further identified as Nitrile 70 -5/16.

As a material, Buna-N (Nitrile) delivers the most widely specified general-purpose sealing elastomer, reliable performance in both static and dynamic service. It resists greases and lubricants, hydraulic fluids, and petroleum-based oils. Continuous operating temperature is published at -40°F (-40°C) to 250°F (121.1°C). Verify compatibility before use with strong acids or ozone and direct sunlight.

You will find this material specified across fluid power, hydraulic and pneumatic systems, and construction equipment.

AFS600-0101-5/16 ships individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
