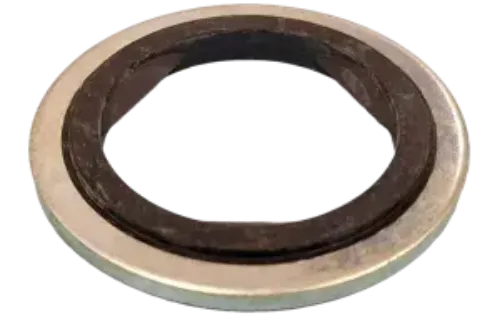

FASTNER SEAL, STEEL PLATED,

The AFS600-0101-7/16 is a black Buna-N (Nitrile) Thread Seal supplied with an inside diameter of 0.438 in (11.11 mm). This thread seal combines mechanical fastening and fluid sealing in a single component. Source specification: Nitrile 70 - 7/16.

As a material, Buna-N (Nitrile) offers low compression set under sustained load and an economical choice for high-volume maintenance programs. The compound resists many alcohols, hydraulic fluids, and petroleum-based oils. Rated temperature range runs from -40°F (-40°C) to 250°F (121.1°C) in continuous service.

Common environments for this compound include hydraulic and pneumatic systems, automotive, and construction equipment.

AFS600-0101-7/16 ships individually. Review your operating media and conditions against this specification before installation. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
