GASKET, KLNGR C4401, 8.000", 150# FF

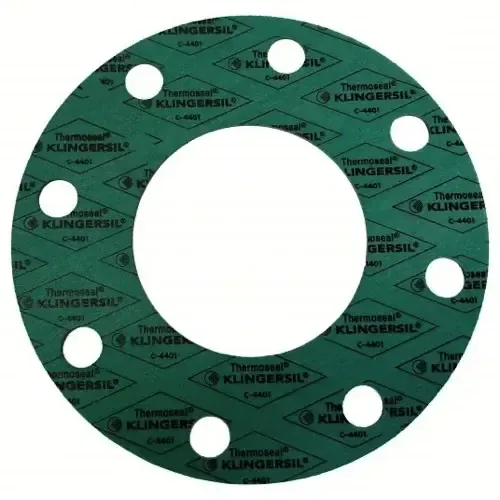

Part number 13850FF125A0800FC is a green Klingersil C-4401 Class 150 full face Flange Gasket measuring an 8 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.125 inch. A flange gasket seals a bolted flange connection across the full pressure rating of the class. Additional detail on this item: NPS, 0.125 THK.

As a material, Klingersil C-4401 is specified for excellent torque retention and low creep relaxation, reliable sealing on flanges with modest surface finish. It resists a broad range of process chemicals, hydrocarbons, and steam and hot water. Applications involving strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope call for a different compound.

Typical settings include steam and hot water systems, power generation, and chemical processing.

This item is sold individually under part number 13850FF125A0800FC. Review your operating media and conditions against this specification before installation. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
