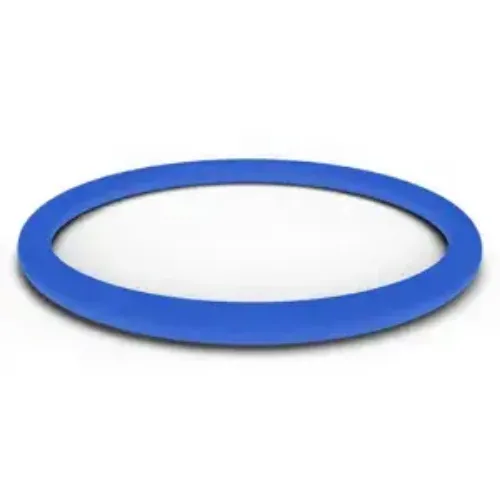

Part number V75MD105 is an AS568-105 blue Viton® (FKM) 75 Shore A O-Ring measuring an inside diameter of 0.143 in (3.63 mm), a cross section of 0.103 in (2.62 mm), and an outside diameter of 0.349 in (8.86 mm). An o-ring compresses into its gland to block fluid or gas migration across a joint.
Viton® (FKM) is specified here for excellent resistance to compression set and permeation, long service life in hot, chemically aggressive environments. The compound resists chlorinated solvents, many acids, and aromatic hydrocarbons. Rated temperature range runs from -15°F (-26.1°C) to 400°F (204.4°C) in continuous service.
The compound meets FDA requirements for food contact, carries NSF listing, and is metal detectable for HACCP and foreign-body control programs. Typical settings include automotive fuel systems, oil and gas, and semiconductor equipment.
Stocked as V75MD105 and sold individually. Nominal inside diameter is listed as 5/32 inch. Review your operating media and conditions against this specification before installation.
Description -105 BLUE FKM 75D O-RING
Actual Cross Section 0.103 inch (2.62 mm)
Actual Inside Diameter 0.143 inch (3.63 mm)
Actual Outside Diameter 0.349 inch (8.86 mm)
Measurement System Imperial
Product Category O-Rings - FDA / Metal Detectable
