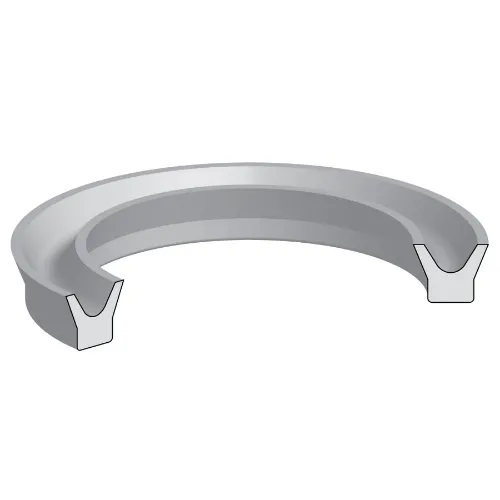

6226 STYLE HOMOGENIOUS U CUP

Part number NU6226-28 is a Buna-N (Nitrile) U-Cup U-Cup Seal supplied with a 1-5/8 inch inside diameter, a 2-1/4 inch outside diameter, and a height of 5/16 inch. An u-cup seal uses a U-shaped profile that system pressure forces outward, tightening the seal as pressure rises.

As a material, Buna-N (Nitrile) is valued for the most widely specified general-purpose sealing elastomer and an economical choice for high-volume maintenance programs. The compound resists greases and lubricants, petroleum-based oils, and many alcohols. It is not the right choice where automotive brake fluid or polar solvents are present.

Typical settings include general industrial maintenance, hydraulic and pneumatic systems, and fluid power.

Reference part number NU6226-28 when ordering; the item is sold individually. Check the compound against your process media, pressure and temperature before committing to a design. For a size or compound outside the standard catalog, APG can quote from a print or sample.
