Part number TSP271 is an AS568-271 white PTFE (Teflon) 55 Shore D Back-Up Ring built to an inside diameter of 9.234 in (234.54 mm), a cross section of 0.139 in (3.53 mm), and an outside diameter of 9.512 in (241.6 mm). A back-up ring installs on the low-pressure side of an o-ring to prevent extrusion into the clearance gap at elevated pressure.
PTFE (Teflon) is specified for non-stick, non-contaminating surface characteristics and excellent dielectric properties. Expect good resistance to oxidizing media, strong acids and bases, and solvents. Continuous operating temperature is published at -65°F (-53.9°C) to 500°F (260°C). Applications involving elemental fluorine at temperature or molten alkali metals call for a different compound.
Common environments for this compound include laboratory equipment, food and beverage, and chemical processing.
Stocked as TSP271 and sold individually. Nominal inside diameter is listed as 9 1/4 inch. Review your operating media and conditions against this specification before installation. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.

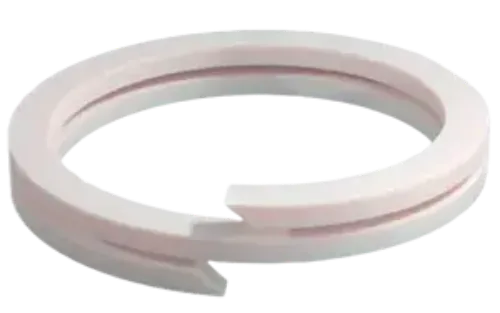

Description -271 WHITE PTFE 55D SPIRAL BACK-UP RING
Actual Cross Section 0.139 inch (3.53 mm)
Actual Inside Diameter 9.234 inch (234.54 mm)
Actual Outside Diameter 9.512 inch (241.6 mm)
Measurement System Imperial
Product Category O-Rings - Backup Rings
