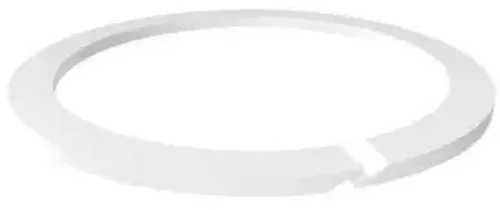

APG stocks the TST126, an AS568-126 white PTFE (Teflon) 55 Shore D Back-Up Ring built to an inside diameter of 1.362 in (34.59 mm), a cross section of 0.103 in (2.62 mm), and an outside diameter of 1.568 in (39.83 mm). A back-up ring installs on the low-pressure side of an o-ring to prevent extrusion into the clearance gap at elevated pressure.
PTFE (Teflon) is specified here for near-universal chemical inertness and non-stick, non-contaminating surface characteristics. This material stands up to steam, solvents, and nearly all industrial chemicals. The material carries a published service range of -65°F (-53.9°C) to 500°F (260°C).
Typical settings include aggressive-media pipelines, chemical processing, and semiconductor fabrication.
This item is sold individually under part number TST126. Nominal inside diameter is listed as 1 3/8 inch. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
Description -126 WHITE PTFE 55D SINGLE TURN
Actual Cross Section 0.103 inch (2.62 mm)
Actual Inside Diameter 1.362 inch (34.59 mm)
Actual Outside Diameter 1.568 inch (39.83 mm)
Measurement System Imperial
Product Category O-Rings - Backup Rings
