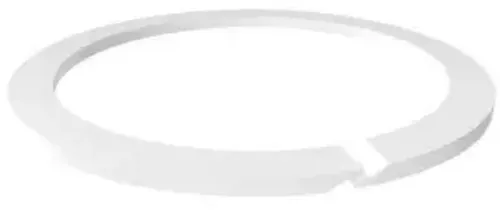

This back-up ring is supplied in AS568-229 white PTFE (Teflon) 55 Shore D built to an inside diameter of 2.359 in (59.92 mm), a cross section of 0.139 in (3.53 mm), and an outside diameter of 2.637 in (66.98 mm), catalogued under part number TST229. It allows a standard o-ring to operate at higher pressures than it could unsupported.
PTFE (Teflon) is specified here for near-universal chemical inertness and excellent dielectric properties. This material stands up to steam, strong acids and bases, and solvents. The material carries a published service range of -65°F (-53.9°C) to 500°F (260°C). Applications involving service requiring elastic recovery or elemental fluorine at temperature call for a different compound.
Typical settings include food and beverage, laboratory equipment, and semiconductor fabrication.
Reference part number TST229 when ordering; the item is sold individually. Nominal inside diameter is listed as 2 3/8 inch. Check the compound against your process media, pressure and temperature before committing to a design. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
Description -229 WHITE PTFE 55D SINGLE TURN
Actual Cross Section 0.139 inch (3.53 mm)
Actual Inside Diameter 2.359 inch (59.92 mm)
Actual Outside Diameter 2.637 inch (66.98 mm)
Measurement System Imperial
Product Category O-Rings - Backup Rings
