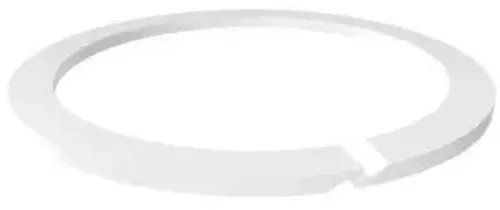

APG stocks the TST431, an AS568-431 white PTFE (Teflon) 55 Shore D Back-Up Ring supplied with an inside diameter of 5.225 in (132.72 mm), a cross section of 0.275 in (6.99 mm), and an outside diameter of 5.775 in (146.69 mm). A back-up ring installs on the low-pressure side of an o-ring to prevent extrusion into the clearance gap at elevated pressure.
The material holds up against oxidizing media, strong acids and bases, and solvents. PTFE (Teflon) offers non-stick, non-contaminating surface characteristics and near-universal chemical inertness. The material carries a published service range of -65°F (-53.9°C) to 500°F (260°C).
Typical settings include aggressive-media pipelines, chemical processing, and food and beverage.
Stocked as TST431 and sold individually. Nominal inside diameter is listed as 5 1/4 inch. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
Description -431 WHITE PTFE 55D SINGLE TURN
Actual Cross Section 0.275 inch (6.99 mm)
Actual Inside Diameter 5.225 inch (132.72 mm)
Actual Outside Diameter 5.775 inch (146.69 mm)
Measurement System Imperial
Product Category O-Rings - Backup Rings
